Fixed Gas Detectors
GTYQ-MIC-500S-CB-IR2
Company credentials are separate from product approvals.

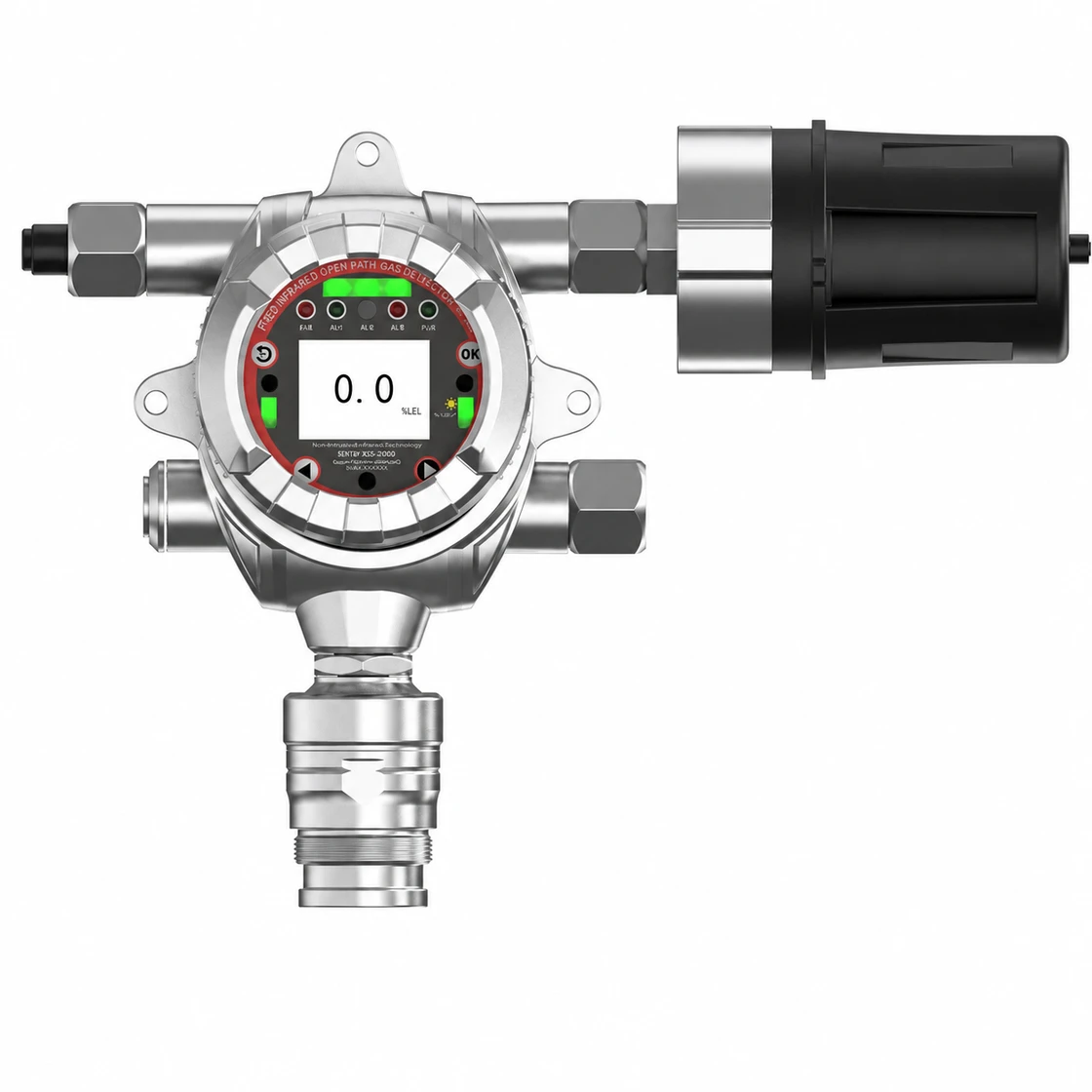

A fixed single-gas detector with dual-beam infrared sensing for combustible gases. Infrared remote control and magnetic-wand operation are documented.
GTYQ-MIC-500S-CB-IR2 uses dual-beam infrared sensing for combustible-gas monitoring. Its standard configuration monitors one gas; confirm the target gas and measuring range for the application. Infrared remote control and magnetic-wand operation are documented alongside front-panel controls.
Contact us to confirm the gas combination and measuring ranges for your application.
| Ingress protection | IP66 |
|---|---|
| Dimensions | 240 × 160 × 90 mm; 240 × 220 × 90 mm with alarm (L × W × H) |
| Weight | 1.4 kg — 1.6 kg with the audio-visual alarm. |
| Operating temperature | -40 °C to 70 °C |
| Display size | 2 in |
| Data storage | > 200,000 records |
| Alarm volume | > 105 dB — At 30 cm. |
| Sampling method | Diffusion |
Review the documented gas and measuring-range options, then request compatibility confirmation for the required configuration.
For gases not listed in this table, contact technical sales to discuss your requirements.
These documents cover the company and do not establish approval for this product.
GR202344201660
Status: active · valid to Oct 15, 2026
51818E02387R2
Status: active · valid to Apr 2, 2027
GTYQ-MIC-500S
A fixed detector for continuous monitoring of one selected gas with industrial analog and digital outputs.
GTYQ-MIC-500S-CB
A fixed gas detector with a standard single-gas configuration, expandable to eight gases. Infrared remote control and magnetic-wand operation are documented.
GTYQ-MIC-600
A fixed multigas detection platform with local display, data logging and configurable industrial outputs.
Selected product
Select the required gases and measuring ranges, and review the listed communication options. Technical sales will confirm compatibility and the final configuration with you.
