Fixed Gas Detectors
GTYQ-MIC-500S-CB
Company credentials are separate from product approvals.

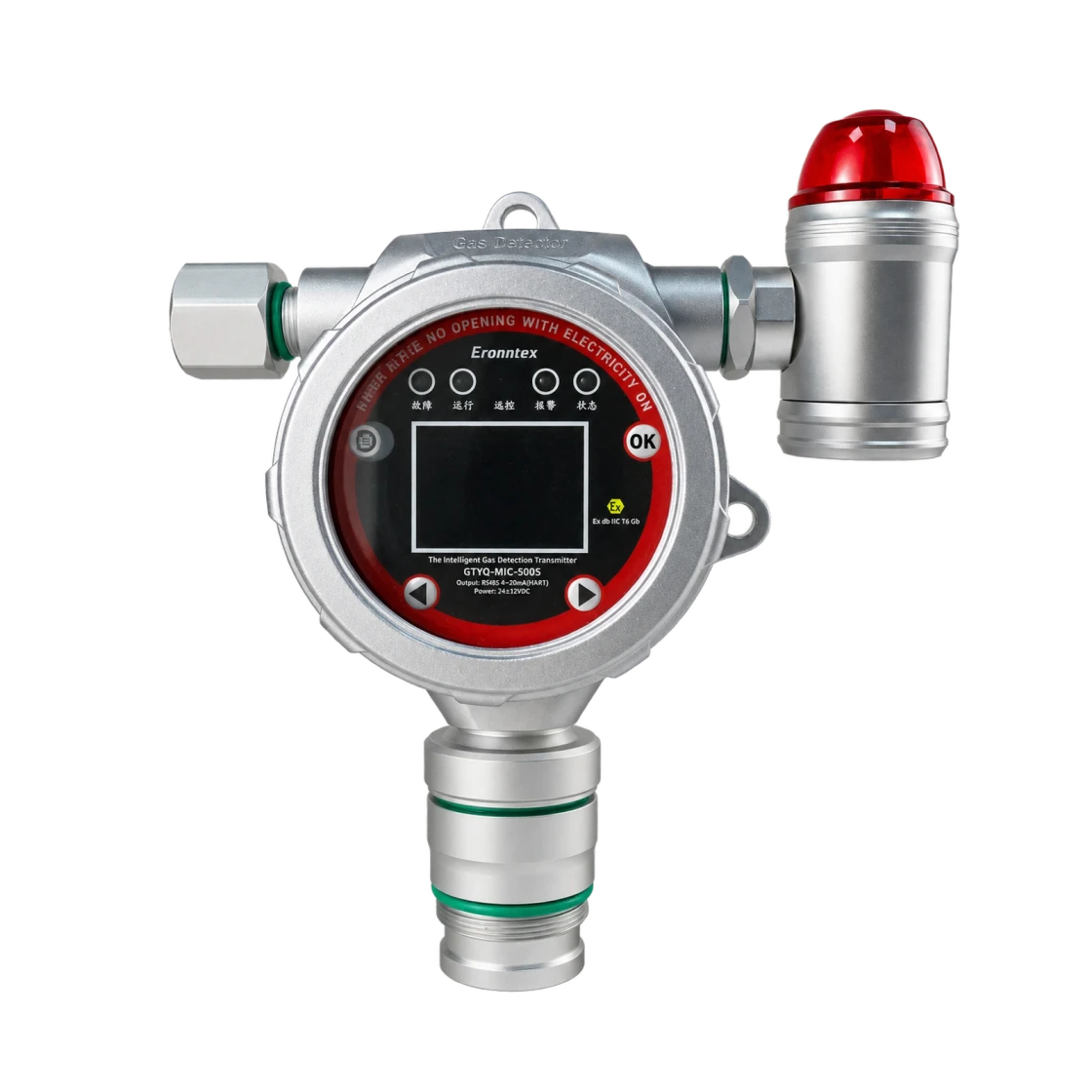

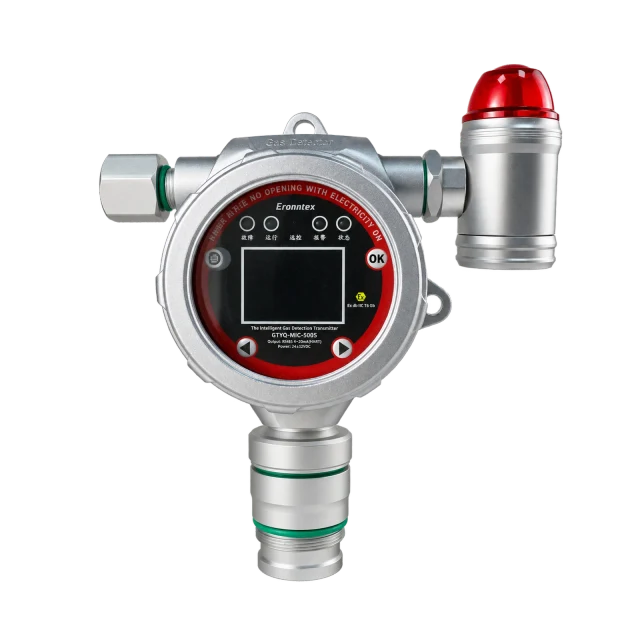

A fixed gas detector with a standard single-gas configuration, expandable to eight gases. Infrared remote control and magnetic-wand operation are documented.
The standard GTYQ-MIC-500S-CB unit monitors one selected gas. An expanded configuration can support up to eight, subject to confirmation of the gas combination and ranges. Its 240 × 160 × 90 mm standard housing changes when an audio-visual alarm is selected, so specify the enclosure arrangement for mounting.
The standard IP66 housing weighs 1.4 kg. With the audio-visual alarm, the documented weight is 1.6 kg and the housing is larger; check the selected arrangement for mounting.
Contact us to confirm the gas combination and measuring ranges for your application.
| Ingress protection | IP66 |
|---|---|
| Dimensions | 240 × 160 × 90 mm; 240 × 220 × 90 mm with alarm (L × W × H) |
| Weight | 1.4 kg — 1.6 kg with the audio-visual alarm. |
| Operating temperature | -20 °C to 55 °C |
| Display size | 2 in |
| Data storage | > 200,000 records |
| Alarm volume | > 105 dB — At 30 cm. |
| Sampling method | Diffusion |
Review the documented gas and measuring-range options, then request compatibility confirmation for the required configuration.
For gases not listed in this table, contact technical sales to discuss your requirements.
These documents cover the company and do not establish approval for this product.
GR202344201660
Status: active · valid to Oct 15, 2026
51818E02387R2
Status: active · valid to Apr 2, 2027
GTYQ-MIC-600-CB
A fixed gas detector with standard configurations for one to six gases, expandable to eight. Infrared remote control and magnetic-wand operation are documented.
BTYQ-MS104K-L
A portable pump-sampling gas detector for application-specific single-gas monitoring.
BTYQ-MS104K-M
A portable gas detector with standard configurations for one to four gases and both diffusion and pumped sampling. An external pump is supplied as standard.
Selected product
Select the required gases and measuring ranges, and review the listed communication options. Technical sales will confirm compatibility and the final configuration with you.
