Fixed Gas Detectors
GTYQ-MIC-600-CB
Company credentials are separate from product approvals.

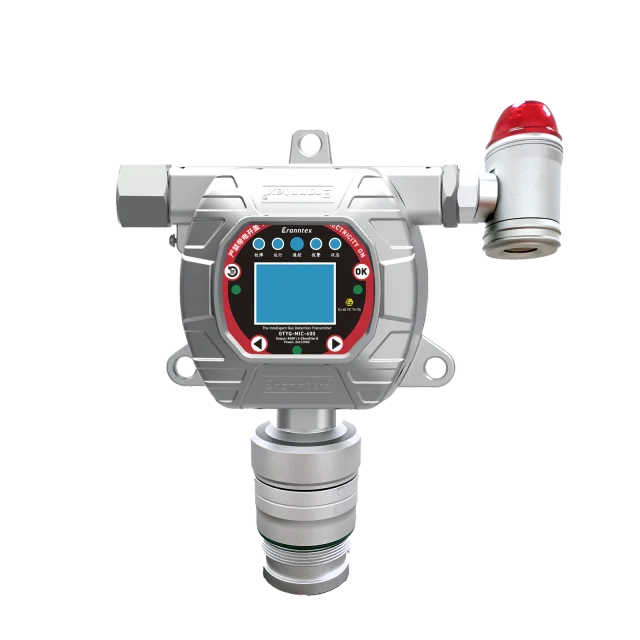

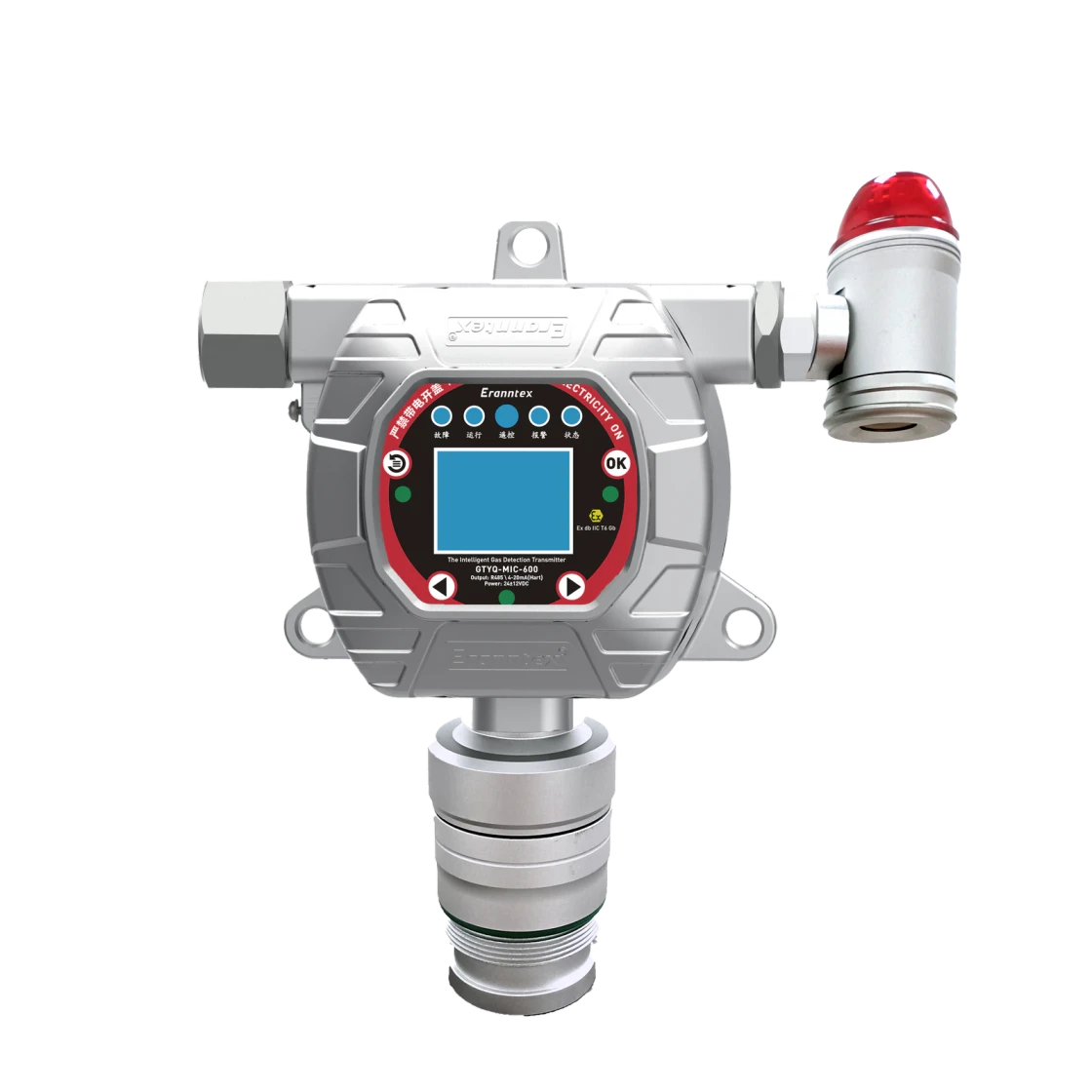

A fixed gas detector with standard configurations for one to six gases, expandable to eight. Infrared remote control and magnetic-wand operation are documented.
GTYQ-MIC-600-CB supports one to six gases in standard configurations, with an expanded chamber for up to eight. The standard chamber measures 240 × 180 × 90 mm; alarm and expanded-chamber arrangements alter the housing dimensions. Confirm the selected gases, ranges and mounting space for the installation.
The IP66 standard chamber weighs 2.2 kg. Alarm and expanded-chamber configurations have different weights and dimensions; confirm the selected arrangement against mounting load and available space.
Contact us to confirm the gas combination and measuring ranges for your application.
| Ingress protection | IP66 |
|---|---|
| Dimensions | 240 × 180 × 90 mm standard chamber; 240 × 230 × 90 mm with alarm; 260 × 180/230 × 90 mm with the expanded chamber |
| Weight | 2.2 kg — 2.7 kg with alarm; expanded chamber configurations are 2.4 kg or 2.9 kg with alarm. |
| Operating temperature | -20 °C to 55 °C |
| Display size | 2 in |
| Data storage | > 200,000 records |
| Alarm volume | > 105 dB — At 30 cm. |
| Sampling method | Diffusion |
Review the documented gas and measuring-range options, then request compatibility confirmation for the required configuration.
For gases not listed in this table, contact technical sales to discuss your requirements.
These documents cover the company and do not establish approval for this product.
GR202344201660
Status: active · valid to Oct 15, 2026
51818E02387R2
Status: active · valid to Apr 2, 2027
GTYQ-MIC-500S-CB
A fixed gas detector with a standard single-gas configuration, expandable to eight gases. Infrared remote control and magnetic-wand operation are documented.
BTYQ-MS104K-L
A portable pump-sampling gas detector for application-specific single-gas monitoring.
BTYQ-MS104K-M
A portable gas detector with standard configurations for one to four gases and both diffusion and pumped sampling. An external pump is supplied as standard.
Selected product
Select the required gases and measuring ranges, and review the listed communication options. Technical sales will confirm compatibility and the final configuration with you.
