Gas Monitoring and Analysis Systems

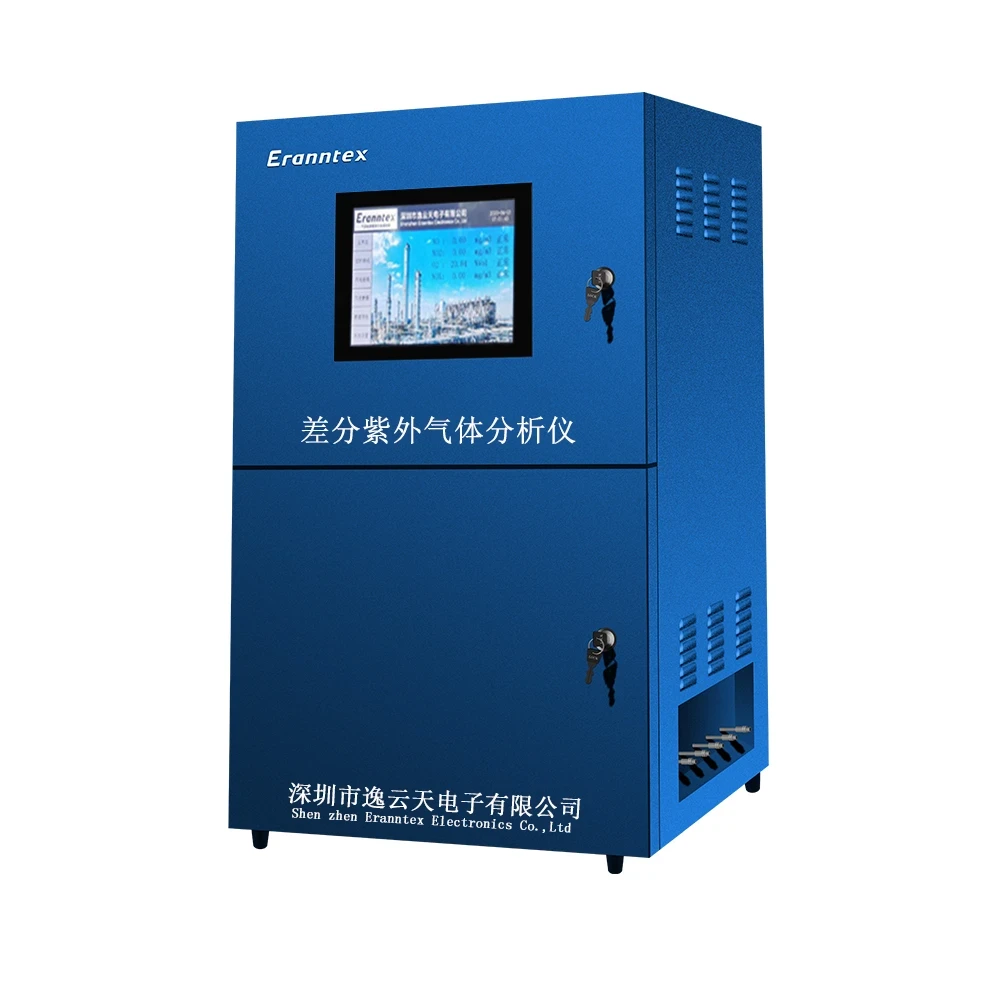

DOAS-2000
Company credentials are separate from product approvals.
An automated online gas analyzer using differential ultraviolet absorption spectroscopy with integrated sample conditioning.
DOAS-2000 is an online gas analyzer for flue gas, desulfurization and denitrification processes, boiler exhaust, VOC emissions and wastewater-pipeline monitoring. It uses differential ultraviolet absorption spectroscopy to measure selected gases continuously.
The system collects the sample, cools and dehumidifies it, filters dust, displays concentration data and transmits results to a PLC or computer. It is intended for applications with limited dust loading; higher-dust or more demanding sample conditions require the appropriate cleaning or conditioning configuration.
Contact us to confirm the gas combination and measuring ranges for your application.
| Ingress protection | IP66 |
|---|---|
| Dimensions | 800 × 500 × 340 mm (H × W × D) |
| Operating temperature | -40 °C to 70 °C |
| Data storage | 16 GB |
| Sampling method | Pump |
Review the documented gas and measuring-range options, then request compatibility confirmation for the required configuration.
For gases not listed in this table, contact technical sales to discuss your requirements.
These documents cover the company and do not establish approval for this product.
GR202344201660
Status: active · valid to Oct 15, 2026
51818E02387R2
Status: active · valid to Apr 2, 2027
GTYQ-MIC-500S
A fixed detector for continuous monitoring of one selected gas with industrial analog and digital outputs.
GTYQ-MIC-500S-CB
A fixed gas detector with a standard single-gas configuration, expandable to eight gases. Infrared remote control and magnetic-wand operation are documented.
GTYQ-MIC-600
A fixed multigas detection platform with local display, data logging and configurable industrial outputs.
Selected product
Select the required gases and measuring ranges, and review the listed communication options. Technical sales will confirm compatibility and the final configuration with you.
