MIC-200-UVIR2 Dual-Infrared and Ultraviolet Flame Detector

MIC-200-UVIR2

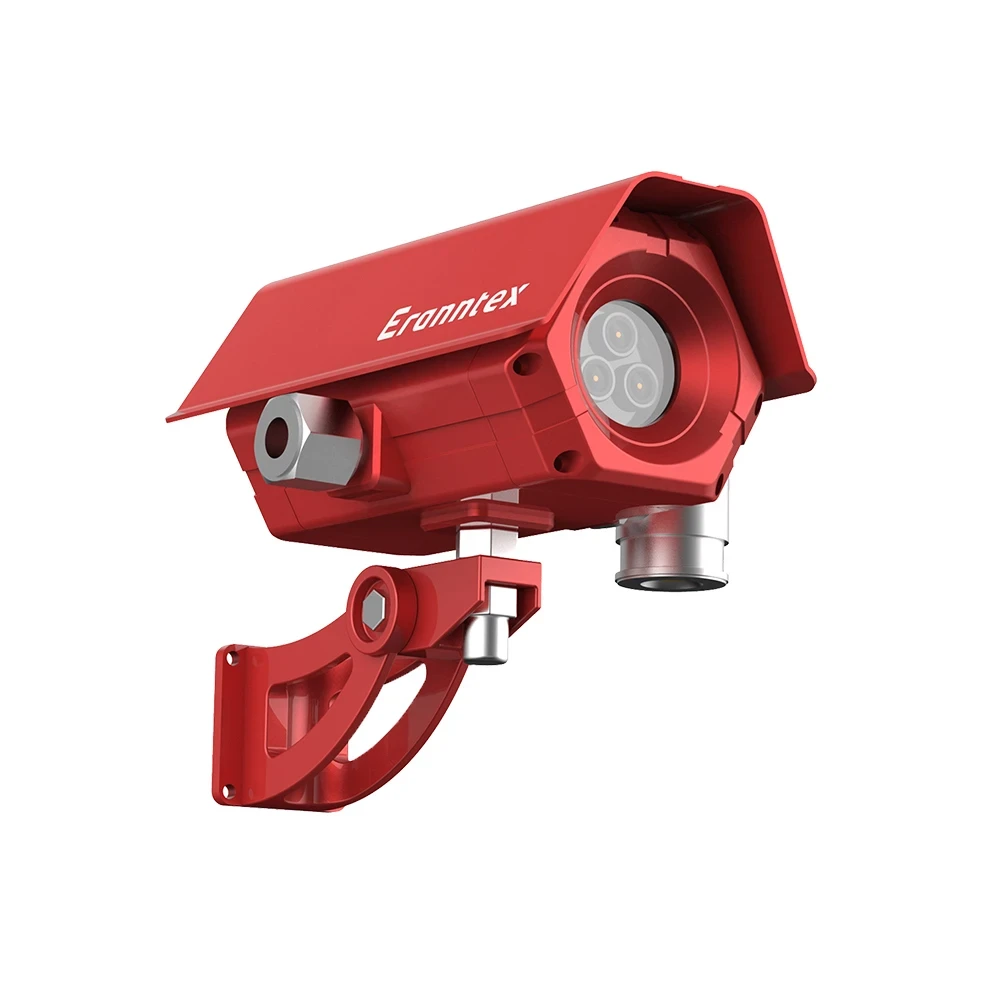

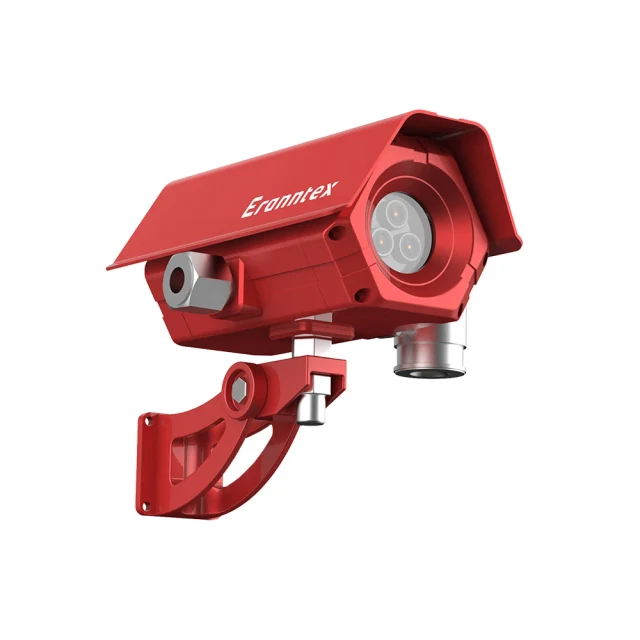

Perspective front view of the Eranntex MIC-200 series explosion-proof flame detector featuring a red flameproof cast housing, integrated sunshield, optical lens window, and multi-axis adjustable swivel mounting bracket.

Certificates & documents

View all (2)

CertificateZII26080321001

CertificateSYEx21.10223X

Product overview

A combined dual-infrared and ultraviolet flame detector for fast industrial fire detection and interference rejection.

Combined dual-infrared and ultraviolet detection

MIC-200-UVIR2 combines two infrared sensors with one ultraviolet sensor. The infrared and ultraviolet fields of view are specified separately, so both need to be considered when positioning the detector.

Sensitivity and delay settings, fault self-diagnostics and adjustable mounting support installation.

Ingress protection: IP66
Operating temperature: -20 °C to 55 °C — Typical operating range.
Weight: Approx. 2 kg

Request a Quote View specifications

Technical specifications

Confirmed technical specifications
Ingress protection	IP66
Weight	Approx. 2 kg
Operating temperature	-20 °C to 55 °C — Typical operating range.
Dimensions	280 × 151 × 110 mm (L × W × H)

Sensor configuration: 2 infrared sensors plus one ultraviolet sensor
Detection distance: 15–50 m depending on the target medium and test fire
Response time: 1–10 s depending on the target medium
Field of view: Infrared >90°; ultraviolet >120°
Power supply: 24 V DC
Output options: 4–20 mA, RS485 Modbus RTU and two relays standard; HART 7 and 4G optional
Sensitivity: Five levels, configurable by remote control
Operating humidity: ≤95% RH, non-condensing
Explosion marking: Ex d IIC T6 / DIP A20 TA,T6

Communication and product capabilities

Included as standard

Confirmed product-wide interfaces and functions

RS485

Options for technical review

Select requirements for technical confirmation

HARTOptional
Add to request
4GOptional
Add to request

Certificates & documents

Certificate

Environmental Labeling (Type II) Product Verification Certificate ZII26080321001

ZII26080321001

Status: active · valid to Sep 16, 2027

Type II environmental labeling verification covering the exact product models listed in the certificate attachment.

Issuer: 广东中天认证中心有限公司
applicant: 深圳市逸云天电子有限公司
manufacturer: 深圳市逸云天电子有限公司

Scope: Model BTYQ-MS104K-M is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model BTYQ-MS104K-L is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model BTYQ-MS104K-S1 is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model BTYQ-MS104K-S2 is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model BTYQ-MS400-S is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model BTYQ-MS600-S is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model BTYQ-MS600-S1 is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model BTYQ-MS600-S2 is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model BTYQ-PTM600-S is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model BTYQ-PTM600-S2 is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model GTYQ-MIC-500S is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model GTYQ-MIC-600 is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model MIC-1000 is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: The certificate lists MIC-3000; the CMS model code MIC3000 is linked through its governed MIC-3000 source identity. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model MIC-200-UVIR2 is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model MIC-200-IR3 is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model MIC-200-UVIR3 is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model MIC-200-IR4 is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model MIC-200-UVIR4 is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

View document

Certificate

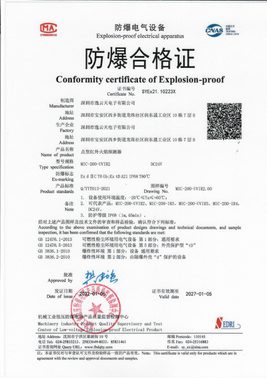

China Explosion-Proof Certificate of Conformity SYEx21.10223X

SYEx21.10223X

View document

Downloads

datasheetMIC-200-UVIR2 English technical summary

Open PDF

Compare adjacent models

Company credentials (2)

MIC-200-IR2

MIC-200-IR2 Dual-Infrared Flame Detector

A dual-infrared flame detector for industrial fire detection with configurable sensitivity and alarm outputs.

Sensing configuration: 2 infrared sensors
Distance: 15–50 m depending on the target medium and test fire
Response: 1–10 s depending on the target medium
Output: 4–20 mA, RS485 Modbus RTU and two relays standard; HART 7 and 4G optional

Certificates & documents (1)

MIC-200-IR3

MIC-200-IR3 Triple-Infrared Flame Detector

A triple-infrared flame detector designed to identify fire radiation while reducing interference-related alarms.

Sensing configuration: 3 infrared sensors
Distance: 15–50 m depending on the target medium and test fire
Response: 1–10 s depending on the target medium
Output: 4–20 mA, RS485 Modbus RTU and two relays standard; HART 7 and 4G optional

Certificates & documents (1)

MIC-200-IR4

MIC-200-IR4 Four-Infrared Flame Detector

A four-infrared flame detector for industrial applications with complex infrared interference.

Sensing configuration: 4 infrared sensors
Distance: 15–50 m depending on the target medium and test fire
Response: 1–10 s depending on the target medium
Output: 4–20 mA, RS485 Modbus RTU and two relays standard; HART 7 and 4G optional
