Transportable Gas Detection Systems

PTM600-S2 Mobile Gas Monitoring Unit

BTYQ-PTM600-S2

Certificates & documents

View all (11)

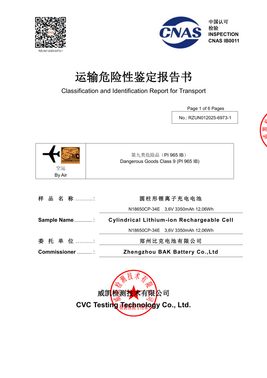

Test reportN18650CP-34E 3350 mAh cell air transport report RZUN012025-6973-1

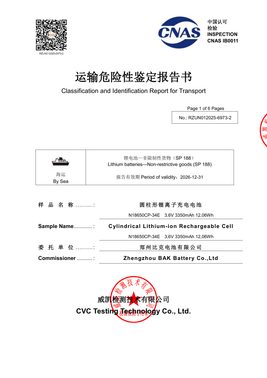

Test reportN18650CP-34E 3350 mAh cell marine transport report RZUN012025-6973-2

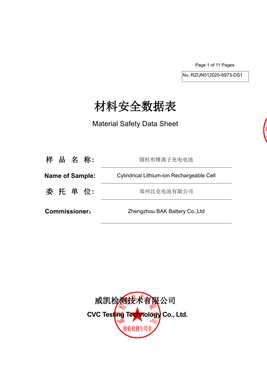

Test reportN18650CP-34E 3350 mAh cell MSDS RZUN012025-6973-DS1

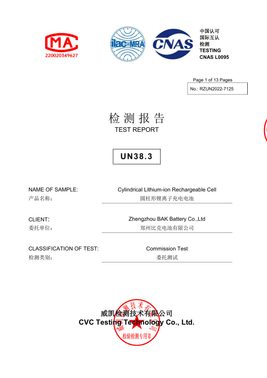

Test reportN18650CP-34E 3350 mAh cell UN 38.3 test report RZUN2022-7125

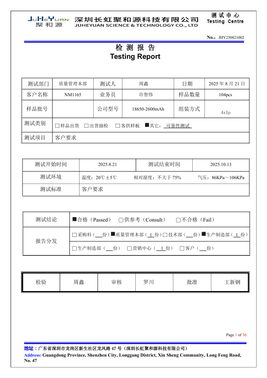

Test reportPTM600-S2 18650 2600 mAh battery reliability test report JHY250821002

CertificateZII26080321001

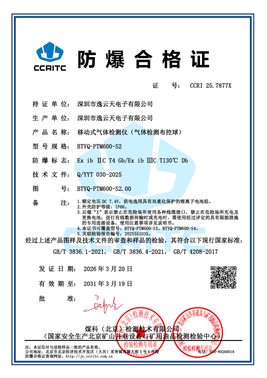

CertificateCCRI 25.7877X

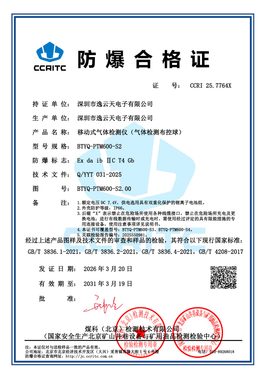

CertificateCCRI 25.7764X

CertificateCCRI 24.7313X

CertificateCCRI 24.7312X

CertificateCCRI 24.7311X

Product overview

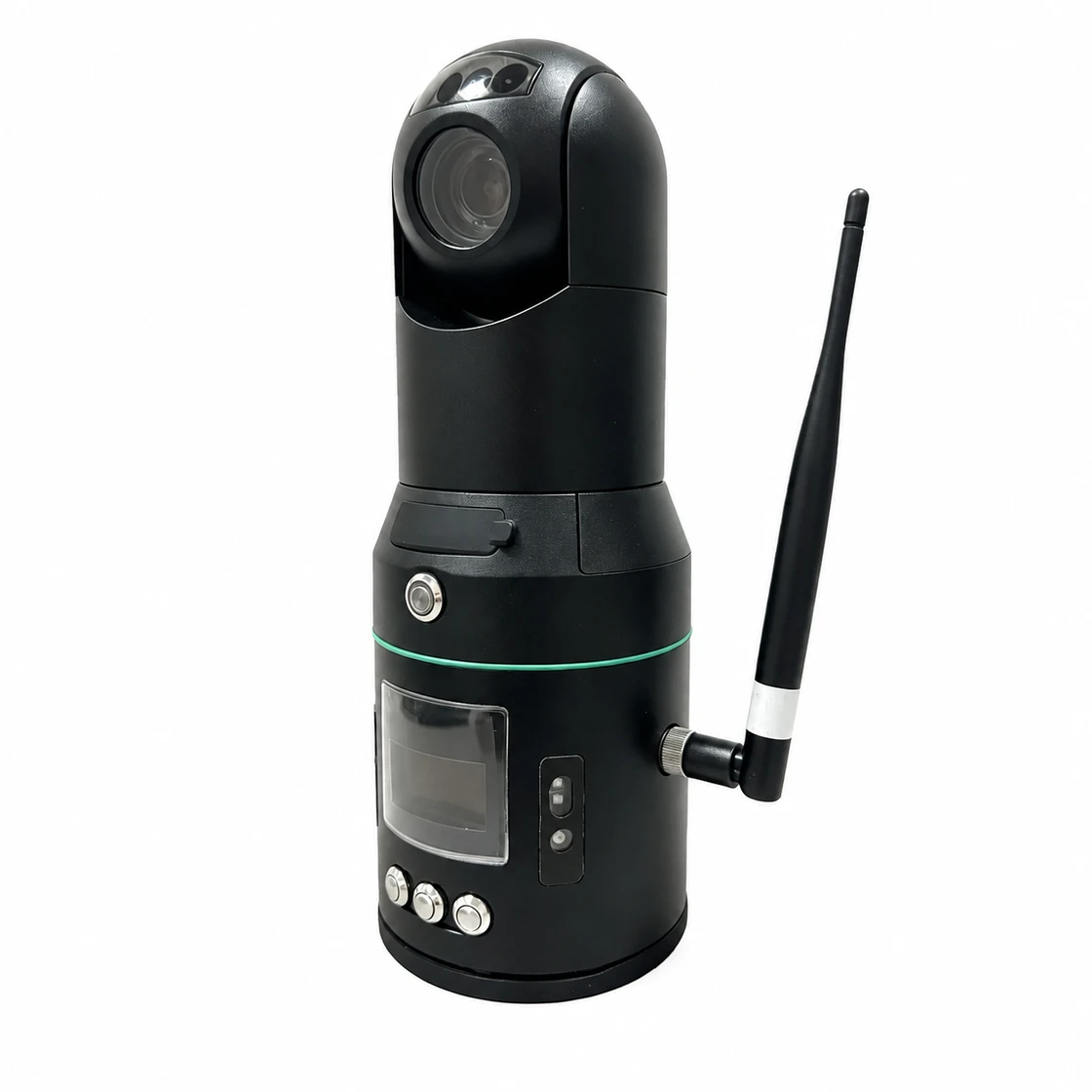

A deployable gas monitoring unit combining configurable detection, video, voice communication and wireless networking.

Deployable gas and video monitoring

BTYQ-PTM600-S2 is a mobile unit configurable for up to six gases for emergency response, temporary area monitoring and remote site observation. It combines gas detection with a pan-tilt camera, local recording, emergency lighting and voice communication.

Diffusion sampling is standard and pumped sampling is available as an option. Wi-Fi and cellular communication support rapid deployment and remote data or video transmission, while the target gases and ranges remain application-specific configuration choices.

Sampling method: Diffusion
Ingress protection: IP66
Operating temperature: -20 °C to 55 °C

Request a Quote View specifications

Technical specifications

Confirmed technical specifications
Ingress protection	IP66
Dimensions	166 × 166 × 360 mm (maximum L × W × H)
Weight	5.5 kg
Battery voltage	11.2 V
Battery capacity	5,000 mAh
Battery runtime	> 8 h
Operating temperature	-20 °C to 55 °C
Data storage	128 GB
Alarm volume	> 95 dB — At 30 cm.
Sampling method	Diffusion

Sampling option: Pump sampling optional
Network port: RJ45
Camera: 2 MP; higher resolution optional
Typical accuracy: ≤ ±2% FS; higher-accuracy sensor option available
Response time: T90 ≤ 30 s (general)
Recovery time: ≤ 30 s (general)
Operating humidity: 10–95% RH
Explosion protection: Ex ia IIC T4 Ga
Standard accessories: Instructions, conformity document, charger and cable, tripod, carrying case, infrared remote control, Bluetooth intercom microphone and tool kit

Supported gas configurations

Review the documented gas and measuring-range options, then request compatibility confirmation for the required configuration.

Gas

Combustible Gas · EX

Measuring range0–100 %LEL

Resolution0 %LEL

Add Combustible Gas · EX 0–100 %LEL to request

Measuring range0–100 %Vol

Resolution0 %Vol

Add Combustible Gas · EX 0–100 %Vol to request

Measuring range0–1,000 ppm

Resolution1 ppm

Add Combustible Gas · EX 0–1,000 ppm to request

Gas

Oxygen · O₂

Measuring range0–30 %Vol

Resolution0 %Vol

Add Oxygen · O₂ 0–30 %Vol to request

Measuring range0–100 %Vol

Resolution0 %Vol

Add Oxygen · O₂ 0–100 %Vol to request

Gas

Carbon Monoxide · CO

Measuring range0–100 ppm

Resolution0 ppm

Add Carbon Monoxide · CO 0–100 ppm to request

Measuring range0–1,000 ppm

Resolution0 ppm

Add Carbon Monoxide · CO 0–1,000 ppm to request

Measuring range0–2,000 ppm

Resolution1 ppm

Add Carbon Monoxide · CO 0–2,000 ppm to request

Measuring range0–5,000 ppm

Resolution1 ppm

Add Carbon Monoxide · CO 0–5,000 ppm to request

Measuring range0–10,000 ppm

Resolution1 ppm

Add Carbon Monoxide · CO 0–10,000 ppm to request

Gas

Hydrogen Sulfide · H₂S

Measuring range0–10 ppm

Resolution0 ppm

Add Hydrogen Sulfide · H₂S 0–10 ppm to request

Measuring range0–100 ppm

Resolution0 ppm

Add Hydrogen Sulfide · H₂S 0–100 ppm to request

Measuring range0–500 ppm

Resolution0 ppm

Add Hydrogen Sulfide · H₂S 0–500 ppm to request

Measuring range0–2,000 ppm

Resolution1 ppm

Add Hydrogen Sulfide · H₂S 0–2,000 ppm to request

4 of 51 gases shown · 122 gas/range options

For gases not listed in this table, contact technical sales to discuss your requirements.

Read all 122 documented gas and measuring-range options

Gas

Hydrogen Sulfide · H₂S

Measuring range0–10 ppm

Resolution0 ppm

Measuring range0–100 ppm

Resolution0 ppm

Measuring range0–500 ppm

Resolution0 ppm

Measuring range0–2,000 ppm

Resolution1 ppm

Gas

Carbon Monoxide · CO

Measuring range0–100 ppm

Resolution0 ppm

Measuring range0–1,000 ppm

Resolution0 ppm

Measuring range0–2,000 ppm

Resolution1 ppm

Measuring range0–5,000 ppm

Resolution1 ppm

Measuring range0–10,000 ppm

Resolution1 ppm

Gas

Oxygen · O₂

Measuring range0–30 %Vol

Resolution0 %Vol

Measuring range0–100 %Vol

Resolution0 %Vol

Gas

Methane · CH₄

Measuring range0–100 %LEL

Resolution0 %LEL

Measuring range0–100 %Vol

Resolution0 %Vol

Gas

Carbon Dioxide · CO₂

Measuring range0–5 %Vol

Resolution0 %Vol

Measuring range0–20 %Vol

Resolution0 %Vol

Measuring range0–100 %Vol

Resolution0 %Vol

Measuring range0–5,000 ppm

Resolution1 ppm

Measuring range0–50,000 ppm

Resolution1 ppm

Gas

Ammonia · NH₃

Measuring range0–100 %LEL

Resolution0 %LEL

Measuring range0–10 ppm

Resolution0 ppm

Measuring range0–100 ppm

Resolution0 ppm

Measuring range0–1,000 ppm

Resolution0 ppm

Measuring range0–5,000 ppm

Resolution1 ppm

Gas

Chlorine · Cl₂

Measuring range0–20 ppm

Resolution0 ppm

Measuring range0–200 ppm

Resolution0 ppm

Gas

Sulfur Dioxide · SO₂

Measuring range0–20 ppm

Resolution0 ppm

Measuring range0–100 ppm

Resolution0 ppm

Measuring range0–1,000 ppm

Resolution0 ppm

Measuring range0–5,000 ppm

Resolution1 ppm

Gas

Nitric Oxide · NO

Measuring range0–20 ppm

Resolution0 ppm

Measuring range0–100 ppm

Resolution0 ppm

Measuring range0–1,000 ppm

Resolution0 ppm

Measuring range0–5,000 ppm

Resolution1 ppm

Gas

Nitrogen Dioxide · NO₂

Measuring range0–20 ppm

Resolution0 ppm

Measuring range0–100 ppm

Resolution0 ppm

Measuring range0–1,000 ppm

Resolution0 ppm

Measuring range0–2,000 ppm

Resolution1 ppm

Gas

Hydrogen · H₂

Measuring range0–100 %LEL

Resolution0 %LEL

Measuring range0–100 %Vol

Resolution0 %Vol

Measuring range0–1,000 ppm

Resolution0 ppm

Measuring range0–20,000 ppm

Resolution1 ppm

Measuring range0–40,000 ppm

Resolution1 ppm

Gas

Volatile Organic Compounds · VOC

Measuring range0–20 ppm

Resolution0 ppm

Measuring range0–200 ppm

Resolution0 ppm

Measuring range0–2,000 ppm

Resolution1 ppm

Measuring range0–10,000 ppm

Resolution1 ppm

Gas

Hydrogen Cyanide · HCN

Measuring range0–30 ppm

Resolution0 ppm

Measuring range0–100 ppm

Resolution0 ppm

Gas

Hydrogen Chloride · HCl

Measuring range0–20 ppm

Resolution0 ppm

Measuring range0–200 ppm

Resolution0 ppm

Gas

Phosphine · PH₃

Measuring range0–5 ppm

Resolution0 ppm

Measuring range0–20 ppm

Resolution0 ppm

Measuring range0–2,000 ppm

Resolution1 ppm

Gas

Combustible Gas · EX

Measuring range0–100 %LEL

Resolution0 %LEL

Measuring range0–100 %Vol

Resolution0 %Vol

Measuring range0–1,000 ppm

Resolution1 ppm

Gas

Chlorine Dioxide · ClO₂

Measuring range0–1 ppm

Resolution0 ppm

Measuring range0–10 ppm

Resolution0 ppm

Measuring range0–100 ppm

Resolution0 ppm

Gas

Ethylene Oxide · ETO

Measuring range0–100 %LEL

Resolution0 %LEL

Measuring range0–100 ppm

Resolution0 ppm

Measuring range0–1,000 ppm

Resolution0 ppm

Gas

Phosgene · COCl₂

Measuring range0–1 ppm

Resolution0 ppm

Measuring range0–10 ppm

Resolution0 ppm

Gas

Silane · SiH₄

Measuring range0–1 ppm

Resolution0 ppm

Measuring range0–50 ppm

Resolution0 ppm

Gas

Fluorine · F₂

Measuring range0–1 ppm

Resolution0 ppm

Measuring range0–10 ppm

Resolution0 ppm

Measuring range0–100 ppm

Resolution0 ppm

Gas

Hydrogen Fluoride · HF

Measuring range0–10 ppm

Resolution0 ppm

Measuring range0–50 ppm

Resolution0 ppm

Gas

Formaldehyde · CH₂O

Measuring range0–10 ppm

Resolution0 ppm

Measuring range0–50 ppm

Resolution0 ppm

Measuring range0–100 ppm

Resolution0 ppm

Measuring range0–1,000 ppm

Resolution1 ppm

Gas

Hydrogen Bromide · HBr

Measuring range0–50 ppm

Resolution0 ppm

Gas

Diborane · B₂H₆

Measuring range0–10 ppm

Resolution0 ppm

Gas

Arsine · AsH₃

Measuring range0–1 ppm

Resolution0 ppm

Measuring range0–10 ppm

Resolution0 ppm

Gas

Ozone · O₃

Measuring range0–1 ppm

Resolution0 ppm

Measuring range0–10 ppm

Resolution0 ppm

Measuring range0–100 ppm

Resolution0 ppm

Measuring range0–2,000 ppm

Resolution1 ppm

Gas

Germane · GeH₄

Measuring range0–1 ppm

Resolution0 ppm

Measuring range0–10 ppm

Resolution0 ppm

Measuring range0–50 ppm

Resolution0 ppm

Gas

Hydrazine · N₂H₄

Measuring range0–1 ppm

Resolution0 ppm

Measuring range0–300 ppm

Resolution0 ppm

Gas

Tetrahydrothiophene · THT

Measuring range0–50 mg/m3

Resolution0 mg/m3

Gas

Bromine · Br₂

Measuring range0–10 ppm

Resolution0 ppm

Measuring range0–50 ppm

Resolution0 ppm

Gas

Acetylene · C₂H₂

Measuring range0–100 %LEL

Resolution0 %LEL

Measuring range0–100 ppm

Resolution0 ppm

Measuring range0–1,000 ppm

Resolution1 ppm

Gas

Ethylene · C₂H₄

Measuring range0–10 ppm

Resolution0 ppm

Measuring range0–100 ppm

Resolution0 ppm

Measuring range0–1,000 ppm

Resolution1 ppm

Gas

Ethanol · C₂H₆O

Measuring range0–100 %LEL

Resolution0 %LEL

Measuring range0–100 ppm

Resolution0 ppm

Measuring range0–2,000 ppm

Resolution1 ppm

Gas

Methanol

Measuring range0–100 %LEL

Resolution0 %LEL

Measuring range0–100 ppm

Resolution0 ppm

Measuring range0–2,000 ppm

Resolution1 ppm

Gas

Nitrogen Oxides · NOₓ

Measuring range0–100 ppm

Resolution0 ppm

Measuring range0–500 ppm

Resolution0 ppm

Measuring range0–2,000 ppm

Resolution1 ppm

Gas

Carbon Disulfide · CS₂

Measuring range0–50 ppm

Resolution0 ppm

Gas

Acrylonitrile · C₃H₃N

Measuring range0–100 ppm

Resolution0 ppm

Gas

Nitrous Oxide · N₂O

Measuring range0–1,000 ppm

Resolution1 ppm

Gas

Methylamine

Measuring range0–50 ppm

Resolution0 ppm

Gas

Nitrogen · N₂

Measuring range0–100 %Vol

Resolution0 %Vol

Gas

Benzene · C₆H₆

Measuring range0–200 ppm

Resolution0 ppm

Gas

Toluene · C₇H₈

Measuring range0–200 ppm

Resolution0 ppm

Gas

Xylene · C₈H₁₀

Measuring range0–200 ppm

Resolution0 ppm

Gas

Styrene · C₈H₈

Measuring range0–200 ppm

Resolution0 ppm

Gas

Vinyl Chloride · C₂H₃Cl

Measuring range0–200 ppm

Resolution0 ppm

Gas

Trichloroethylene · C₂HCl₃

Measuring range0–200 ppm

Resolution0 ppm

Gas

Tetrachloroethylene (PID) · C₂Cl₄

Measuring range0–200 ppm

Resolution0 ppm

Gas

Methyl Bromide · CH₃Br

Measuring range0–200 mg/m3

Resolution0 mg/m3

Measuring range0–100 ppm

Resolution0 ppm

Gas

Ethanethiol · C₂H₅SH

Measuring range0–10 mg/m3

Resolution0 mg/m3

Gas

Nitrogen Tetroxide · N₂O₄

Measuring range0–100 ppm

Resolution0 ppm

Communication and product capabilities

Included as standard

Confirmed product-wide interfaces and functions

Ethernet
Data logging

Options for technical review

Select requirements for technical confirmation

LoRaOptional
Add to request
MESHOptional
Add to request
BeiDouOptional
Add to request
GPSOptional
Add to request

Certificates & documents

Certificate

Environmental Labeling (Type II) Product Verification Certificate ZII26080321001

ZII26080321001

Status: active · valid to Sep 16, 2027

Type II environmental labeling verification covering the exact product models listed in the certificate attachment.

Issuer: 广东中天认证中心有限公司
applicant: 深圳市逸云天电子有限公司
manufacturer: 深圳市逸云天电子有限公司

Scope: Model BTYQ-MS104K-M is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model BTYQ-MS104K-L is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model BTYQ-MS104K-S1 is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model BTYQ-MS104K-S2 is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model BTYQ-MS400-S is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model BTYQ-MS600-S is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model BTYQ-MS600-S1 is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model BTYQ-MS600-S2 is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model BTYQ-PTM600-S is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model BTYQ-PTM600-S2 is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model GTYQ-MIC-500S is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model GTYQ-MIC-600 is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model MIC-1000 is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: The certificate lists MIC-3000; the CMS model code MIC3000 is linked through its governed MIC-3000 source identity. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model MIC-200-UVIR2 is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model MIC-200-IR3 is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model MIC-200-UVIR3 is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model MIC-200-IR4 is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

Scope: Model MIC-200-UVIR4 is listed on the certificate attachment. Scope is limited to the Type II environmental labeling claim verified under GB/T 24021-2024 / ISO 14021:2016 and ZTIIPJ01-01-2026.

View document

Certificate

China Explosion-Proof Certificate of Conformity CCRI 25.7877X

CCRI 25.7877X

View document

Certificate

China Explosion-Proof Certificate of Conformity CCRI 25.7764X

CCRI 25.7764X

View document

Certificate

China Explosion-Proof Certificate of Conformity CCRI 24.7313X

CCRI 24.7313X

View document

Certificate

China Explosion-Proof Certificate of Conformity CCRI 24.7312X

CCRI 24.7312X

View document

Certificate

China Explosion-Proof Certificate of Conformity CCRI 24.7311X

CCRI 24.7311X

View document
